How to write Swift Firmware to Motorola GOB

Incorrect email!

The article was successfully sent to the email

To get the latest MOTOTRBO GOB FLASH tool and Firmware go here, choose Firmware tab and download Swift Utilities Pack package.

MOTOTRBO-GOB FLASH-R14-0300
    1. Launch MOTOTRBO GOB FLASH tool;
    Note!
    Make sure the radio is on the channel option board feature is activated on.

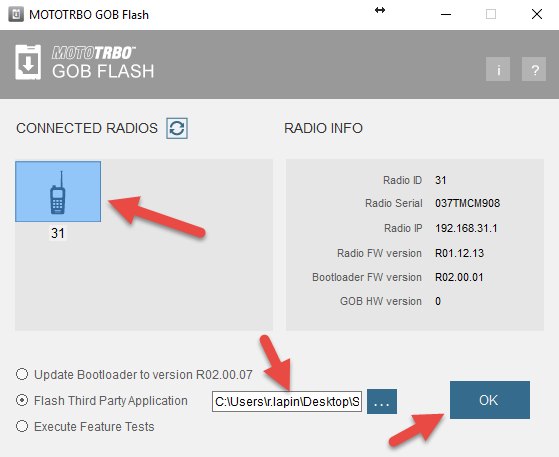

     Click the radio detected by MOTOTRBO GOB FLASH tool, click Flash Third Party Application and select firmware file, then click OK

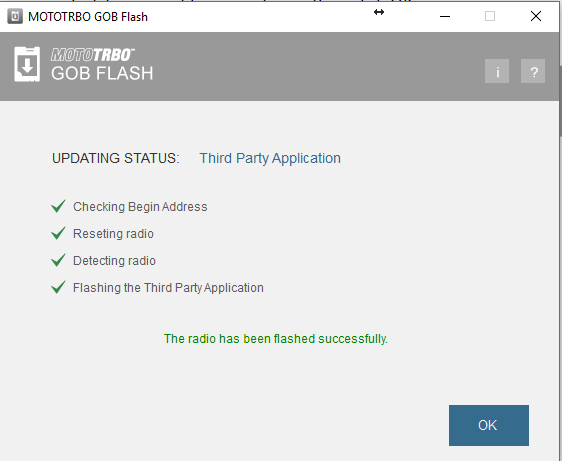

    2. Motorola GOB has been written successfully
    Note!
    This MOTOTRBO GOB FLASH tool does not detect old GOBs. In this case you need to use older version of MOTOTRBO GOBFLASH tool

MOTOTRBO_GOBFLASH_R12_0212
    1. Launch MOTOTRBO GOB FLASH tool

    Note!
    Make sure that the radio is on the channel option board feature is activated on

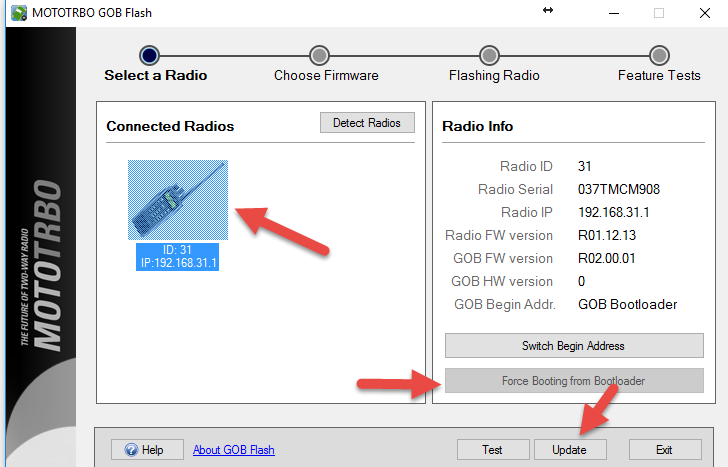

    2. Click the radio detected by MOTOTRBO GOB FLASH tool, click Force Booting from Bootloader and then Update

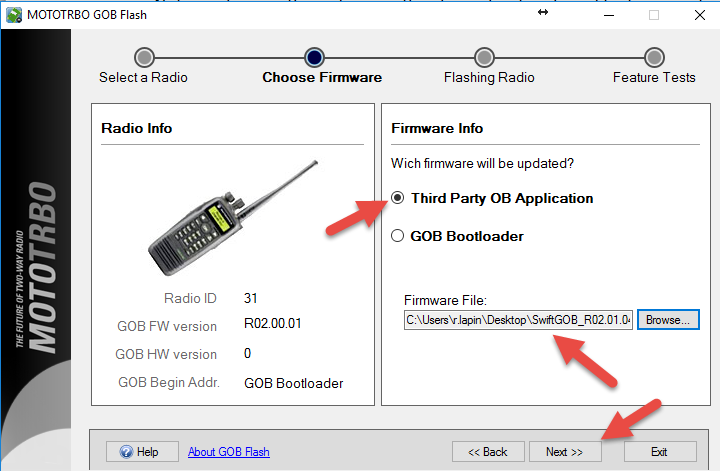

    3. Click Third Party GOB Application, select firmware file and click Next

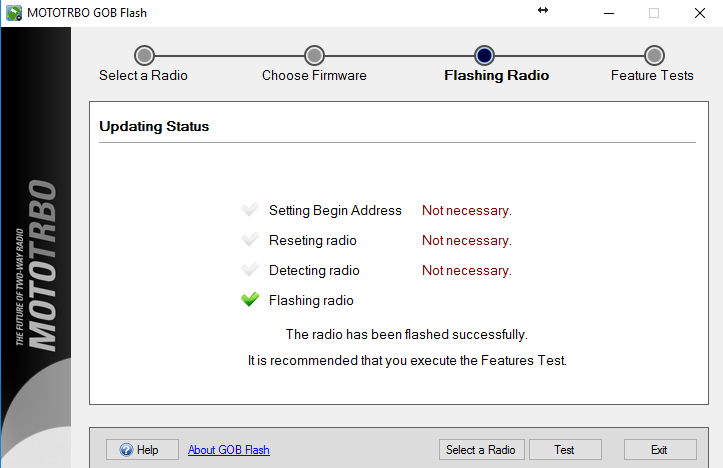

Motorola GOB has been written successfully
